Fence Detection System Overview

The Smart Electric Fence is a highly efficient and intelligent security solution designed to either integrate with an existing perimeter fence or function as a standalone barrier. This system utilizes steel wires that are isolated from the fence base, delivering a controlled, non-lethal electric shock that ensures both safety and deterrence. Any attempt to climb, cut, or tamper with the fence triggers a brief, harmless shock to the intruder, acting as a significant deterrent. Additionally, any sophisticated attempt to disable or sabotage the system is detected and immediately reported to the control center, where pre-programmed alarms are activated.

Services and Products

System Functionality

The protected area is divided into zones, typically ranging from 50 to 300 meters in length. The electric fence can either be installed independently or connected to an existing perimeter structure, whether at ground level or mounted on a wall. The fence is composed of steel conductors and fence posts, with wires spaced approximately 95 to 250 mm apart. These wires are insulated from the fence’s foundation using specialized insulators.

Each zone is linked to a processor and an energizer, which regulate voltage pulses delivered in less than one millisecond. These pulses are confined within a safe energy range and supplemented by low-voltage signals to enhance security. In the event of an intrusion, the system not only delivers a controlled shock to the intruder but also pinpoints the breach on a site map displayed in the control center. Simultaneously, alarms are triggered and preset commands are executed both within the control room and in the secured area to effectively identify and prevent further intrusion.

The system can also operate in a non-shock detection mode. In this configuration, the system continuously monitors the fence and raises alarms upon detecting any interference or breach, without delivering a shock.

Installation Methods

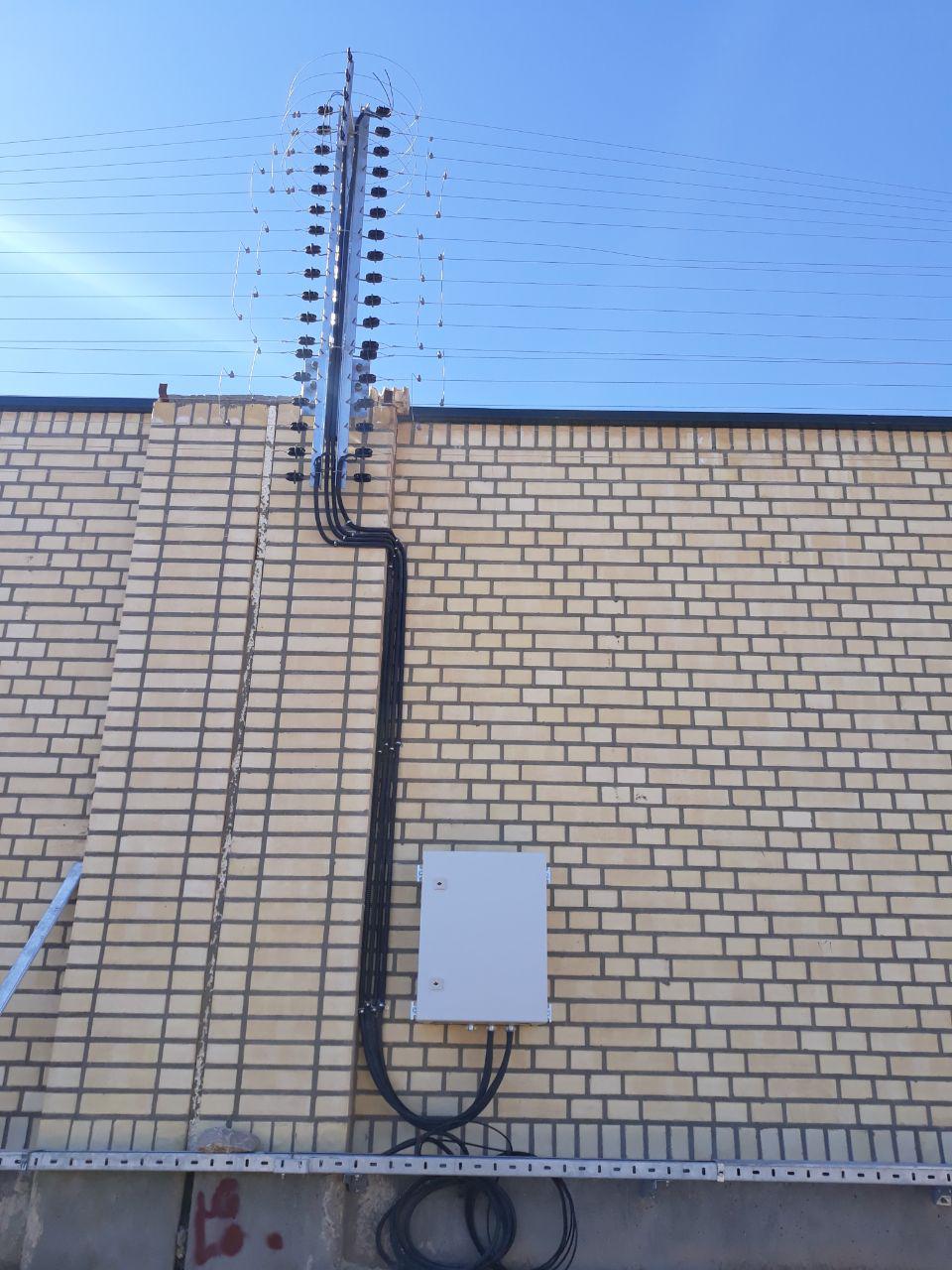

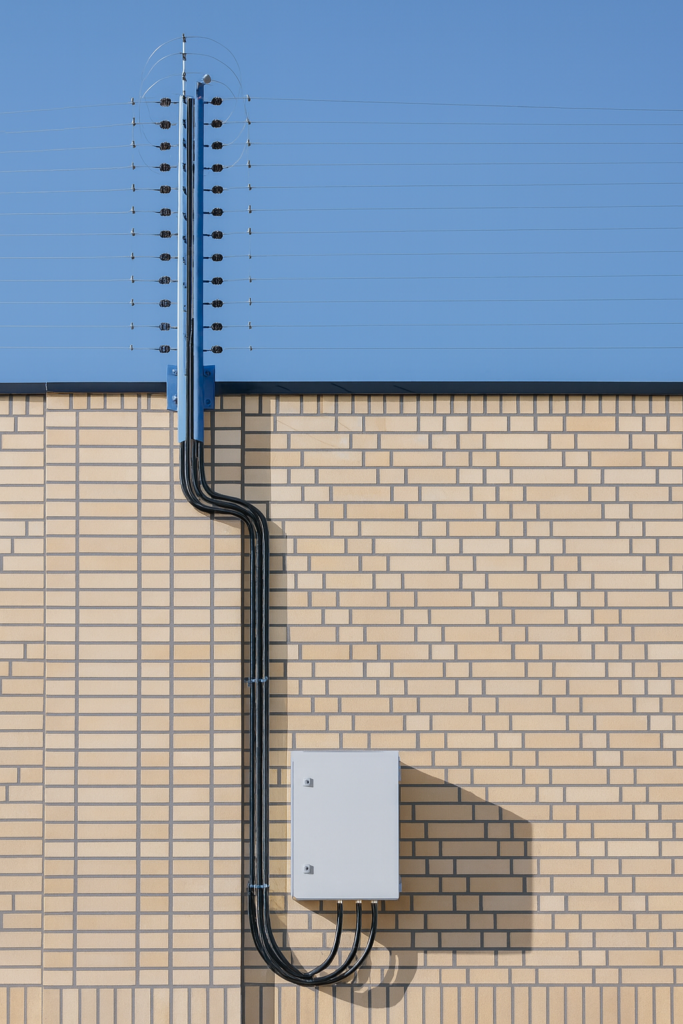

The Smart Electric Fence offers versatile installation options. It can serve as a standalone security solution or be integrated with conventional perimeter fences to enhance deterrence and intrusion detection. When used alongside traditional walls or fences, the Smart Electric Fence can be installed on top (at heights of one to two meters) to prevent climbing, or directly at ground level in front or behind existing fences, providing an elevated layer of security.

In situations requiring advanced protection against tampering, such as wall damage or ground excavation, the system can be paired with additional technologies like microphonic cables and point sensors. This integrated approach offers a comprehensive and highly effective solution for perimeter security, creating an impenetrable defense against unauthorized access.

PSF by PERSEC SMART: Advanced Electric Fence System

The PSF by PERSEC SMART is a cutting-edge Electric Fence system designed to deliver a 1kV pulsed shock to deter unauthorized intruders from entering secured sites. This highly effective security solution is ideal for medium to large outdoor areas, including warehouses, manufacturing plants, industrial facilities, and data centers. The system provides reliable perimeter protection by delivering controlled, non-lethal pulses, ensuring both safety and robust defense against intrusion.
